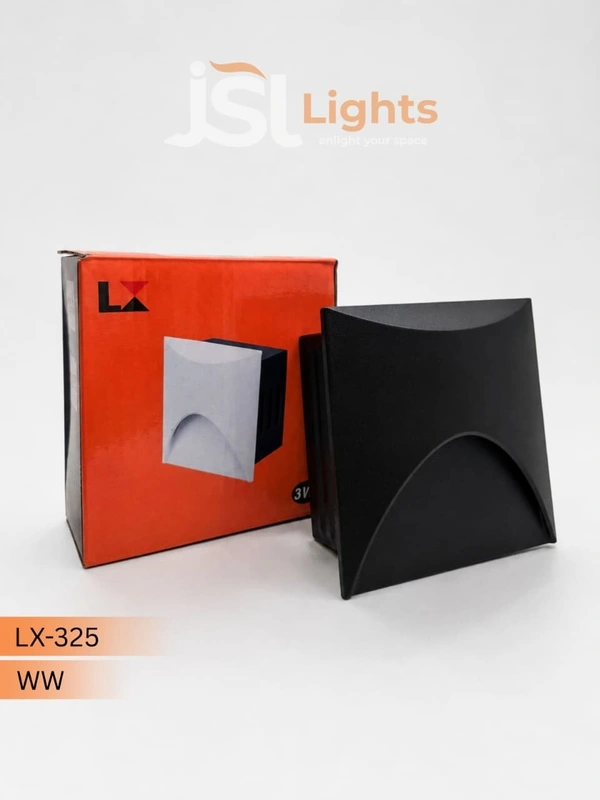

LX-325 3W LED Footlight|Modern Matte Black Square Step Light | Warm White Waterproof Outdoor & Staircase Skirting Light

Feature	Details
Model Classification	LX-325
Wattage	3 Watts
Operational Grid	AC 150–265V | 50/60Hz
Chassis Color	Black
Color Spectrum	Warm White
Illumination Orientation	Curved Anti-Glare Downward Throw
Protection Rating	Waterproof Outdoor & Indoor Grade
Primary Placement	Staircase Skirting, Low-Wall Path, Corridor Steps
Wholesale Packaging	20 Units / Master Box

Measurement	Value
Outer Face Frame (O)	85 mm x 85 mm (Sleek Square Profile)
Wall Cut-out Width (C)	68 mm (Installation Cutting Hole)
Core Structure	Thermal-Grade Die-Cast Aluminum & Polycarbonate Diffuser
Mounting Mechanism	Heavy-Duty Flush Wall Retention Framework

Chassis Upkeep Protocol: Cut off power at the main distribution board prior to executing any maintenance or cleaning. Free the dark matte housing from building particles or outdoor dust using a light, moisture-free anti-static microfiber cloth. To ensure the high-end black powder-coated finish does not streak, weather, or peel, keep away from harsh industrial solvents or volatile chemical sprays.

Wall Cut-out Alignment: Ensure the masonry or drywall extraction layout exactly matches the 68mm cutting dimensions. The flush-fit box configuration is calibrated to anchor tightly inside stair skirting panels or concrete wall channels once fixed.

Waterproof Seal Integrity: During outdoor or landscape installation, ensure the rear electrical junction box and wire wire connections are tightly taped and sealed. Keeping the rubber gasket lining perfectly flush during wall mounting prevents moisture intake and safeguards internal microelectronics from water ingress over continuous monsoon cycles.

We stand by our quality. This product comes with a 24 Months Warranty covering the LED and the APRA driver. For bulk inquiries or installation assistance, please contact our support team.
