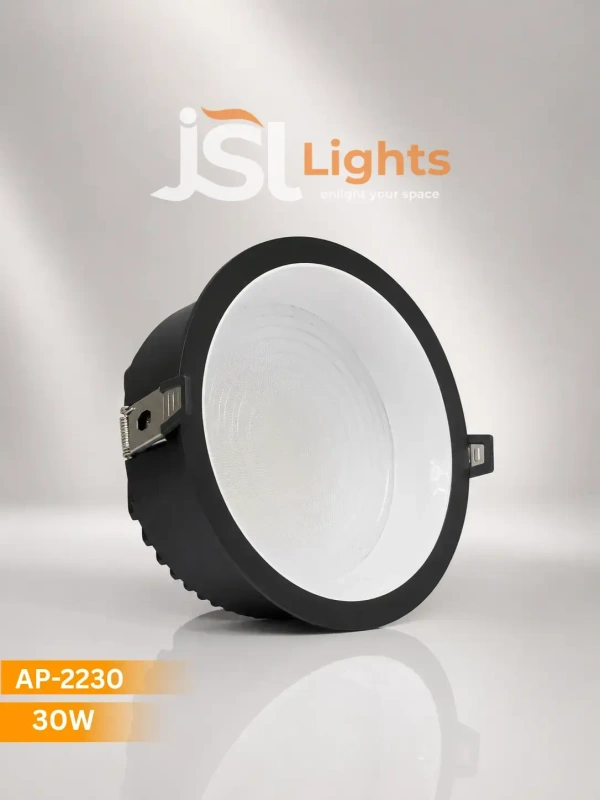

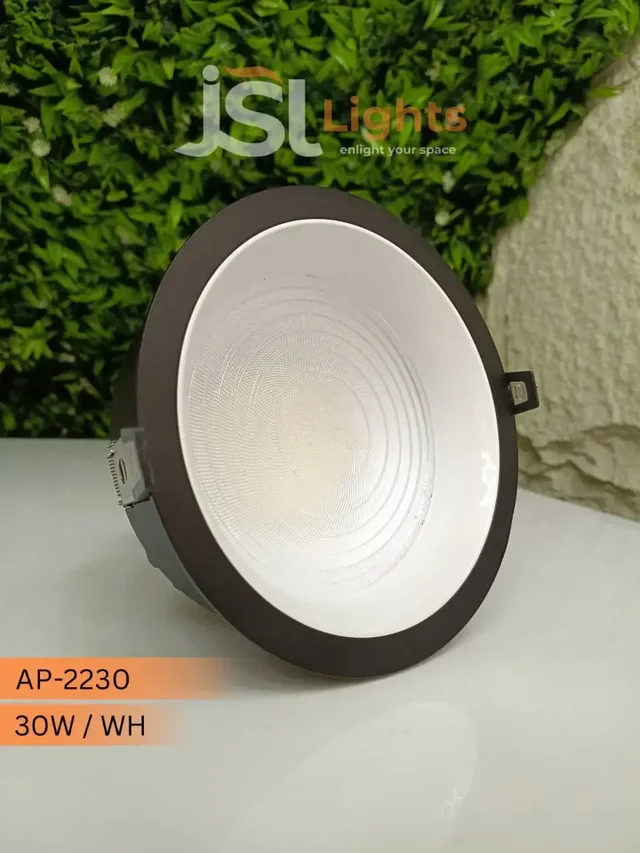

AP-2230 Premium 30W COB LED Downlight |Black Deep Recessed Ceiling Light - Cool White Bright Office Lighting |COB Spot Light

Feature	Details
Model Classification	AP2230
Wattage	30 Watts
Operational Grid	AC 150–265V | 50/60Hz
Chassis Color	Black
Color Spectrum	Warm White
Color Rendering Index	80

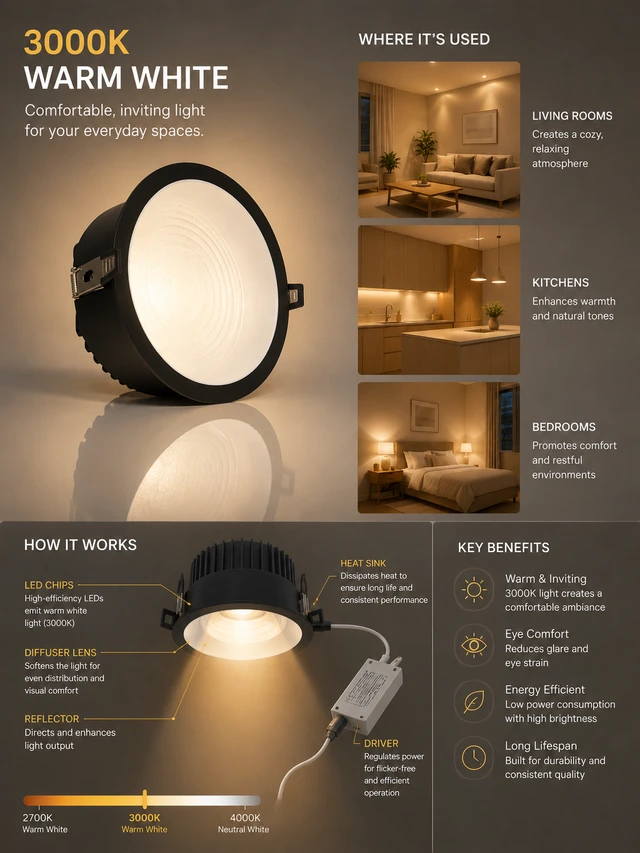

Illumination Tech	High-Flux Integrated Chip-on-Board (COB)
Wholesale Packaging	20 Units / Master Box

Measurement	Value

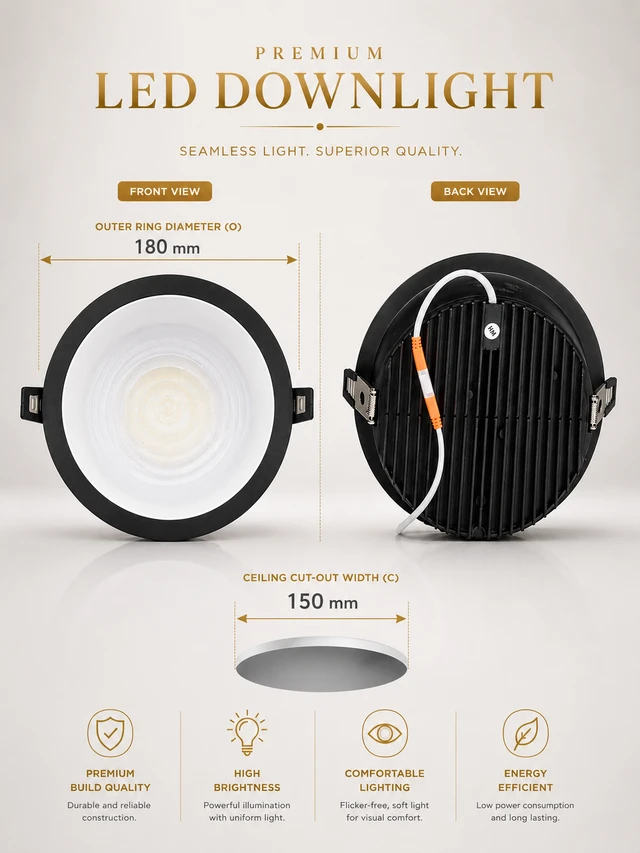

Outer Ring Diameter (O)	180 mm
Ceiling Cut-out Width (C)	150 mm (Installation Hole)
Core Structure	Thermal-Grade Die-Cast Aluminum
Anchor Fitting	Heavy-Spring Recessed Ceiling Clips

Chassis Upkeep Protocol: Cut off power at the main distribution board prior to executing any maintenance or cleaning. Free the dark matte housing from building particles or ceiling dust using a light, moisture-free anti-static microfiber cloth. Strictly avoid applying volatile chemical agents, window cleaning sprays, or wet rags to avoid discoloring the deep black finish.

Ceiling Cut-out Alignment: Ensure the false ceiling extraction layout exactly matches the 150mm cut-out (C) dimensions. The heavy-duty structural springs are calibrated to securely grip standard gypsum, POP, or modular wooden panels once snapped into place.

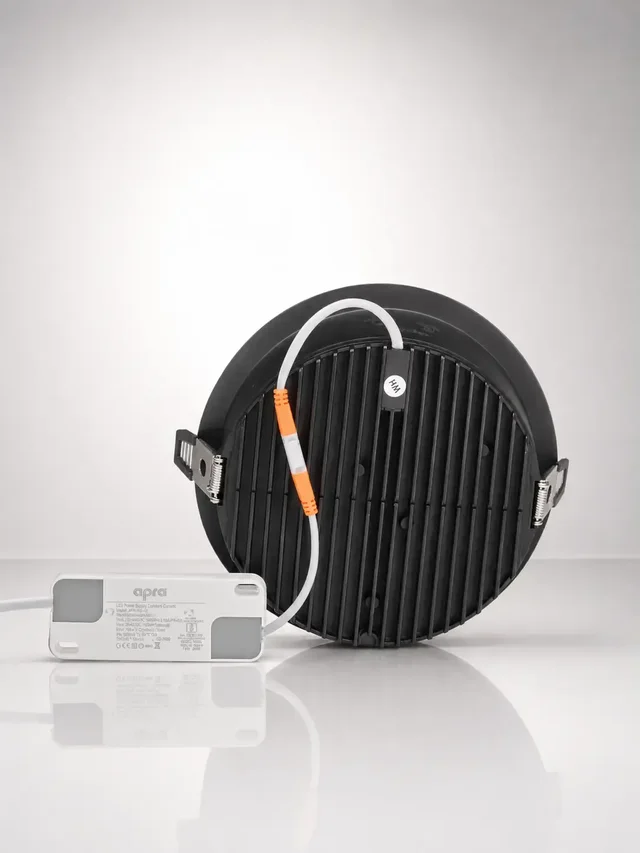

Thermal Path Protection: Ensure that structural wiring bundles, drop wires, or ceiling insulation layers do not rest directly on top of the rear aluminum heat sink structure. Maintaining uninhibited cross-ventilation inside the roof plenum is critical to protect the system against premature heat strain.

We stand by our quality. This product comes with a 24 Months Warranty covering the LED and the APRA driver. For bulk inquiries or installation assistance, please contact our support team.
